Demco 110 & 150 Gallon Skid Sprayers
110 & 150 Gallon Skid Sprayers

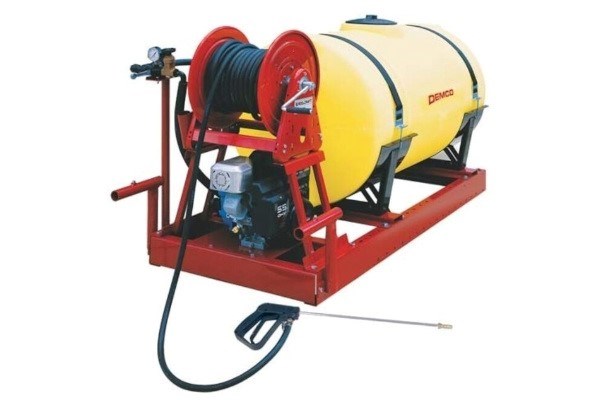

Perfect for acreage spraying, the 110 or 115 gallon Pro Series sprayer can mount in the back of your pickup or flatbed trailer. The heavy duty form steel skid frame is built strong with the high quality you expect from Demco.
Features
QUALITY CONSTRUCTION & FEATURES
This unique sprayer comes with the quality construction and features that you expect from Demco.
Different pump options and boom sizes are available, along with an option of 100’ of hose on a hose reel to meet your specific needs. This sprayer is a great option to consider as part of your “arsenal” for spraying.
- 110 or 150 gallon polyethylene tank features sump, molded sight gauge and large fillwell with a no-splash fillwell cover. 5 GPM electric and gas engine roller pump units include agitation in tank.
- Heavy duty formed steel skid frame (W-30" x L-70").
- Electric motor, diaphragm pump with Viton® valves. Draws 9 amps @ 20 PSI (delivers 5 GPM). Max. pressure is 35 PSI.
- 3 HP Honda® or 3.5 HP B&S with centrifugual pump with deliver of 12 GPM @ 50 PSI, 65 PSI maximum pressure.
- Fertilizer and Roundup® compatible.
- Hypro® engine driven roller pump (C4101) delivers a max. 6.6 GPM at 2600 RPM (open flow). Max. pressure is 150 PSI.
- Hypro® engine driven straight centrifugal pump: Pump delivers 94 GPM at 30 PSI. Max. pressure is 70 PSI.
- Ace engine driven centrifugal pump delivers 19 GPM max. and 40 PSI max. with 3.5 HP Briggs & Stratton engine.
- 18" handgun with 15' hose (380RB).
- 12' and 18' booms feature floodjet tips (AN1.5 with 40' nozzle spacing) and spring loaded boom wing breakaway.
- 21' Truss-T boom features vertical and horizontal boom breakaway with 20" nozzle spacing. Spray tips are not included. 10 GPA maximum output when used with electric pump.
Specifications
OPTIONS
Frame
| Part Number | Description |
| 9464035 | 110 Gallon Skid Frame |
| 9464036 | 150 Gallon Skid Frame |
Tank
| Part Number | Description |
| P110 24A | 110 Gallon Tank with agitation |
| P150 32A | 150 Gallon Tank with agitation |
Engines
| Part Number | Description |
| GE3HP | 3.5 HP B&S |
| GH4HP | 4 HP Honda® |
| DHC155 | 6.5 HP with centrifugal pump |
| DHC155H | 5.5 HP Honda® with centrifugal pump |
Pumps
| Part Number | Description |
| C4101 | 4 Roller pump |
| XL4101 | 4 Roller "Silver Cast" pump |
PluPlumbing
| Part Number | Description |
| 9465008 | 5 GPM Electric pump plumbing kit (pump included) |
| SMR | 4 Roller pump plumbing kit (1 Section) (engine/pump not included) |
| SMR3 | 4 Roller pump plumbing kit (3 Section) (engine/pump not included) |
| 9465009 | Centrifugal plumbing kit (1 Section) (engine/pump not included) |
| 9465010 | Centrifugal plumbing kit (3 Section) (engine/pump not included) |
| 9465128 | Centrifugal plumbing kit (1 Section) (3.5 HP B&S engine/pump included) |
| 9465129 | Centrifugal plumbing kit (1 Section) (3 HP Honda® engine/pump included) |
Boom with Plumbing
| Part Number | Description |
| DB12 | 12' Boom (1 section)(4 nozzles)(40" spacing) |
| DB18 | 18' Boom (1 section)(6 nozzles)(40" spacing) |
| DB21T | 21' Truss-T boom (13 conventional nozzles) Transport width 8' |
Accessories
| Part Number | Description |
| 9428035 | Hose Reel with 100' of 1/2" Hose. Reel will hold 200' |
| 120RB | 1/2" Rubber Hose |
| 25660-3 | Lawn & turf gun with #3 nozzle |
| CRATE | LTL freight shipments require crating |
