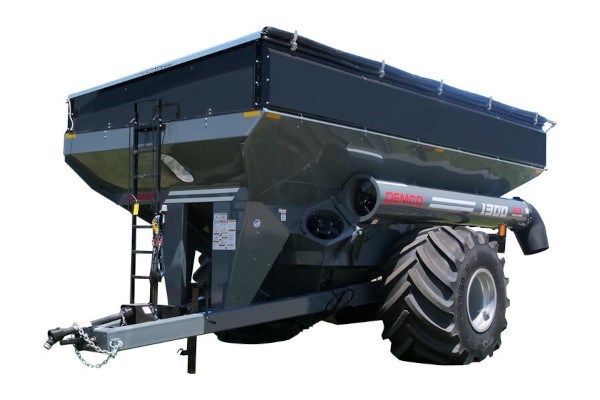

Demco 1300 & 1500 Grain Carts

Standard Features

• 1 ¾ - 1000 RPM PTO
• Protect auger driver and tractor PTO with the automatic reset “cut-out” clutch with overrunning clutch
• Adjustable austempered cast hitch, fits category 4 or 5 hammer strap tractor drawbar
• High visibility - reflective decals
• LED Tail, flasher/turn signal lights and auger spotlight for nighttime operation
• Tube and truss design
• Welded box construction with silicone sealed seams resists rust and corrosion
• Heavy duty spindles and hubs

Auger

• 20” diameter balanced auger with 3/8” flighting and Posi-Drive connection
• UltraFlyte made with 1008/1010 high carbon steel including a thicker outer edge, resulting in up to 50% longer wear and faster conveying
• Forward reach auger for optimum operator visibility
• 2 stage unload auger folding cylinder

OPTIONS

• Roll top tarp
• Ergonomic pendant control
• Scale kits
• Hydraulic Drive Kit - High Speed/Torque
• Camso Track System - 100 Series 36” Wide Belt
• Soucy Track Systems - 36” Wide Belt

NOTES ON HYDRAULICS: A standard grain cart requires two hydraulic remotes. The optional adjustable spout requires an additional hydraulic remote. Additional 35 - 40 GPM oil flow is required for hydraulic unloading drive. 70 GPM max oil flow is required for high speed high torque hydraulic unloading drive.
