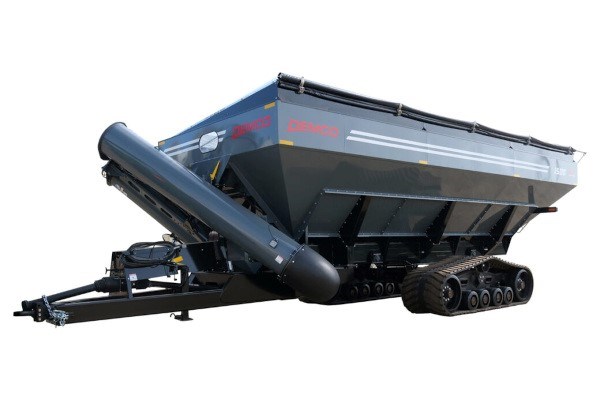

Demco 1500 Grain Cart
1500 Grain Cart
DEMCO’s newest Dual Auger Grain Cart design is available in RIGHT SIDE or LEFT SIDE unloading auger positions. The NEW FRONT FOLDING AUGER design allows us to maintain low clearance on both sides of the grain cart.
Features
• 1 ¾ - 1000 RPM PTO
• Protect auger driver and tractor PTO with the automatic reset “cut-out” clutch with overrunning clutch
• NO Pulleys or Belts! PTO driven drivetrain. Gearbox includes 2 output PTO shafts (1 for horizontal auger and 1 for vertical auger).
• Adjustable austempered cast hitch, fits category 4 or 5 hammer strap tractor drawbar
• Grain viewing windows
• 10,000 lb. drop-leg tongue jack with separate storage position provides tighter turning radius
• Hand wheel operated clean-out door at bottom of auger for easy post season clean-out
• High visibility - reflective decals & LED lights
• Narrow transport width – 14’
• Better clearance - low side cart height
• Low center of gravity for side hill stability
• 6 lever operated doors for trough clean-out
• Backlit ergonomic pendant (requires 1 remote outlet)
• Roll tarp
• 5-point scale system (monitor not included)
Dual Augers
• 22” diameter vertical auger with 3/8” flighting and Posi-Drive connection
• 20” horizontal drag auger
• UltraFlyte made with 1008/1010 high carbon steel including a thicker outer edge, resulting in up to 50% longer wear and faster conveying
• Forward reach auger for optimum operator visibility - adjusts vertically from 12’ to 16’ to help prevent grain spilling
• Auger folds within the width of the box for compact transporting and storage
• 2 stage unload auger folding cylinder
Options
• Camso Track Systems - 100 Series, 36” Wide Belt
• Soucy Track Systems - 36” Wide Belt
• Electric roll tarp
• Auto gate shutoff for drag auger doors (requires the Libra Cart Wireless Scale)
• Hydraulic Jack
Specifications
| 1500 Grain Cart Specifications | |
| Level Full Capacity | 15000 |
| Heaped Full Capacity | 1600 |
| Vertical Unload Auger | 22" |
| Horizontal Drag Auger | 20" |
| Unloading Time (bu/min.) | 600 |
| Spindle Size | 5 1/2" |
| Tractor HP Required | 300 |
| Hub Size | -- |
| Tread Width | 13'5" |
| Tongue Weight Empty | 5000 lbs. |
| Tongue Weight Loaded | 6500 lbs. |
| Total Weight-Wheels/Tires and Tarp | -- |
| Rear Ground Clearance | -- |
| Physical Size | |
| A Auger extends to side | 11" to 4'5" |
| B Box width (transport) | -- |
| C Box height (low side) | 11' |
| D Ground clearance | 18" |
| E Auger extends to front | 3' 7" |
| F Box length | 31' 11" |
| G Box height (high side) | 12' |
| H Total length | 42' |
| I Axe to tongue length | 25' 8" |
| J Drawbar/tongue height (adj.) | 1'6" |
| K Auger clearance height | 9' 7" to 14' 10" |
