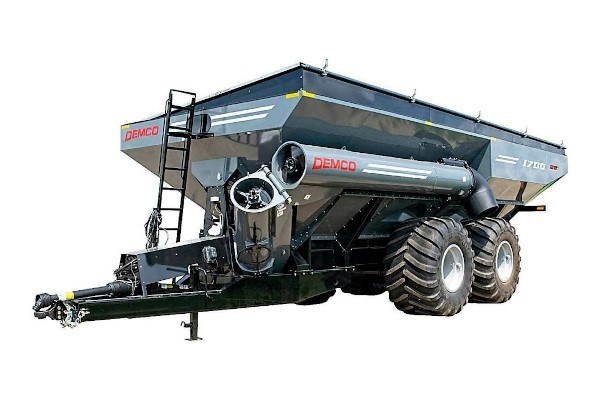

Demco 1700 Grain Cart

Standard Features

• 1 ¾ - 1000 RPM PTO
• Protect auger driver and tractor PTO with the automatic reset “cut-out” clutch with overrunning clutch
• NO Pulleys or Belts! PTO driven drivetrain. Gearbox includes 2 output PTO shafts (1 for horizontal auger and 1 for vertical auger).
• Adjustable austempered cast hitch, fits category 4 or 5 hammer strap tractor drawbar
• Grain viewing windows
• 10,000 lb. drop-leg tongue jack with separate storage position provides tighter turning radius
• Hand wheel operated clean-out door at bottom of auger for easy post season clean-out
• High visibility - reflective decals & LED lights
• Narrow transport width – 14’
• Better clearance - low side cart height ONLY 11’1” (1700) and 11’8” (2200)
• Low center of gravity for side hill stability
• 6 lever operated doors for trough clean-out
• Backlit ergonomic pendant (requires 1 remote outlet)
• Roll tarp
• 5-point scale system (monitor not included)

NOTE: Demco grain carts are not to be towed down the road loaded

Dual Augers

• 22” diameter vertical auger with 3/8” flighting and Posi-Drive connection
• 20” horizontal drag auger
• UltraFlyte made with 1008/1010 high carbon steel including a thicker outer edge, resulting in up to 50% longer wear and faster conveying
• Forward reach auger for optimum operator visibility - adjusts vertically from 12’ to 16’ to help prevent grain spilling
• Auger folds within the width of the box for compact transporting and storage
• 2 stage unload auger folding cylinder

Options

• Electric roll tarp
• Auto gate shutoff for drag auger doors (requires the Libra Cart Wireless Scale)
• Hydraulic Jack
