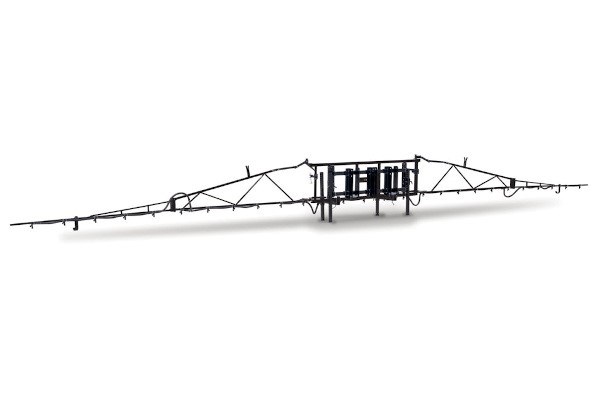

Demco 30’ & 45’ DTB Series Truss Sprayer Booms
30’ & 45’ DTB Series Truss Sprayer Booms
Features
- Heavy duty truss framework eliminates boom wing lashing.
- The boom is made of 11/4" heavy wall tubing and 1" tubing on the wing extensions.
- Vertical and horizontal breakaway on the boom wings.
- Boom neatly folds to the rear for 10' transport width.
- All booms are available with 3/4" high volume plumbing and TeeJet® drip free diaphragm check nozzles with stainless steel boom and hose clamps spaced at 20".
- Skids on both ends of boom to protect tips. Wheel assisted tip protectors are optional.
- Feeder lines not included.
NOTE: Booms are unassembled. Factory setup is available.
NOTE: Demco flotation mechanism (DBFT) is recommended for truss boom.
Specifications
OPTIONS
Boom with Plumbing
| Part Number | Description |
| DB30DF | 30' Truss Boom with TeeJet® Drip Free Plumbing (19 nozzles) |
| DB45DF | 45' Truss Boom with TeeJet® Drip Free Plumbing (27 nozzles) |
Boom without Plumbing
| Part Number | Description |
| DB30B | 30' Truss Boom without Plumbing |
| DB45B | 45' Truss Boom without Plumbing |
Accessories: 3-POINT Mounting Kit
| Part Number | Description |
| DTB3 | Mounting Brackets to attach Boom to a tractor's 3-point hitch (Category II & III) |
Accessories: REAR MOUNT Mounting Kit
| Part Number | Description |
| 9416012 | Mounting Brackets to attach Boom to Demco 300 thru 500 gallon Rear Mount units |
Accessories: TRAILER Mounting Kit
| Part Number | Description |
| DB9 | Universal Mounting Brackets to attach Boom to Trailer Frame |
| SUDB | Factory setup |
| DBFT | Flotation Mechanism |
| DBSAL | Auto Boom Leveler |
| 9428009 | Hydraulic Height Adjuster for trailer and rear mount models (24" travel) |
| DBHY | Hydraulic Boom Wing Leveling |
| DBTP | Wheel Assisted Boom Tip Protectors |
| 9428002 | Fence Line Spray Kit, Electric |
| 9428003 | Fence Line Spray Kit, Manual |
| DB30EXB | Convert a 28' Boom to a 30' Boom without Plumbing |
| DB45EXB | Convert a 28' Boom to a 45' Boom without Plumbing |
| DB30EXDF | Convert a 28' Boom to a 30' Boom with TeeJet® Plumbing |
| DB45EXDF | Convert a 28' Boom to a 45' Boom with TeeJet® Plumbing |
