Demco 300 Gallon Deluxe Single Axle Sprayers

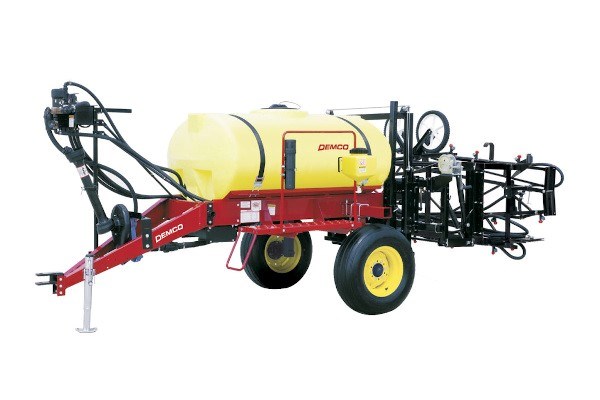

300 Gallon Deluxe Single Axle Sprayers
Demco's 300 Gallon Deluxe Single Axle with a 28’ 30’ or 45’ boom has 10 gauge formed steel trailer with 27" ground clearance.
Features
A PROVEN, TIME-TESTED DESIGN
Demco’s 300 gallon trailer sprayers have a proven, time-tested design. Available with many different boom and pump options, as well as many accessories, Demco 300 gallon trailer sprayers can be configured for your application requirements.
If you need a smaller capacity field sprayer, you need to look at Demco!
FEATURES
- 300 gallon polyethylene elliptical tank with two dual jet agitators and sump.
- 10 gauge formed steel trailer with 27" ground clearance and adjustable wheel spacings from 60"-80".
- A large, convenient step and work platform with safety rail.
- A clean water tank is conveniently mounted on each 300 gallon frame.
- All truss booms are complete with 3/4" high volume plumbing and TeeJet® drip free diaphragm check nozzles with stainless steel boom and hose clamps spaced at 20".
- Demco's DBFT flotation boom mechanism is recommended on 300 gallon “Deluxe” sprayers.
NOTE: Sprayer is less spray tips. Factory setup available.
Boom may be removed for shipping.
Specifications
OPTIONS
Tank
| Part Number | Description |
| PE300RA | 300 Gallon Tank |
Trailer Frame
| Part Number | Description |
| 9411015 | 300 Gallon Single Axle Trailer with T11L Tires (60" - 80" wheel spacing) |
Pumps
| Part Number | Description |
| XL1700D | Hypro® "Silver Cast" 5 Roller Pump |
| C1700D | Hypro® 5 Roller Pump |
| 9425015 | Hypro® Gear Drive Pump with Constant Velocity PTO Shaft (C9016 540) |
| 9425026 | Hypro® Belt Drive Pump with Constant Velocity PTO Shaft (C9403 540S) |
| 9425056 | Hypro® Hydraulic Pump (C9303HM1)(hoses included) |
Plumbing / Pump Mount
| Part Number | Description |
| 9425002 | Roller Pump Kit (Manual Controls included) |
| 9425043 | Hypro® Gear Drive Centrifugal Kit |
| 9425003 | Hypro® Belt Drive Centrifugal Kit |
| 9425004 | ypro® Hydraulic Centrifugal Kit |
Controls
| Part Number | Description |
| CP3B3HV | Manual Control Valves for Centrifugal Pumps |
| CP414HVR | 3 section electric (solenoid valve) |
Boom with Plumbing
| Part Number | Description |
| DBFT | Flotation Boom Mechanism (required on this model) |
| DB30DF | 30' Truss Boom with Drip Free Plumbing |
| DB45DF | 45' Truss Boom with Drip Free Plumbing |
Accessories
| Part Number | Description |
| SU341 | Factory setup |
| DBTP | Wheel Assisted Boom Tip Protectors |
| DBSAL | Auto Boom Leveler |
| CPTK1 | Quick Refill (utilizes nurse tank transfer pump for refilling) |
| 9428009 | Hydraulic Height Adjuster (24" travel) |
| DBHY | Hydraulic Boom Wing Leveling |
| 9428002 | Fence Line Spray Kit, Electric |
| 9428003 | Fence Line Spray Kit, Manual |
| DBHG | Handgun (includes 25' of 1/2" hose) |
