Demco 300 Gallon Single Axle Sprayer
300 Gallon Single Axle Sprayer

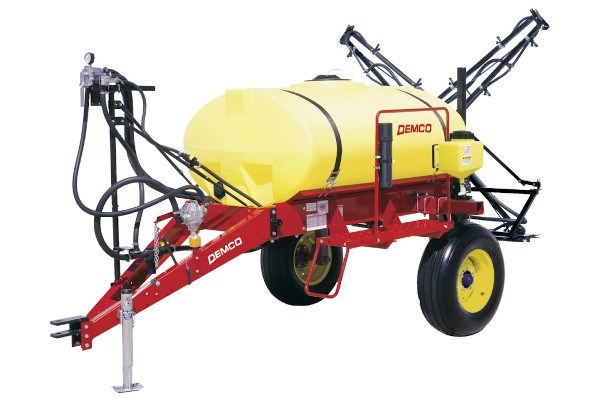

Demco's 300 Gallon Single Axle Sprayer with a 21’, 30’, or 40’ boom has polyethylene elliptical tank with two dual jet agitators and sump.
Features
A PROVEN, TIME-TESTED DESIGN
Demco’s 300 gallon trailer sprayers have a proven, time-tested design. Available with many different boom and pump options, as well as many accessories, Demco 300 gallon trailer sprayers can be configured for your application requirements.
If you need a smaller capacity field sprayer, you need to look at Demco!
FEATURES
- 300 gallon polyethylene elliptical tank with two dual jet agitators and sump.
- 10 gauge formed steel trailer with 27" ground clearance and adjustable wheel spacings from 60"-80".
- A large convenient step, and work platform with safety rail.
- Three section manual or electric boom controls.
- Truss-T booms are complete with 1/2" plumbing and TeeJet® drip free diaphragm check nozzles spaced at 20".
- A clean water tank is conveniently mounted on each 300 gallon frame.
NOTE: Sprayer is less spray tips.
Factory setup available.
Boom may be removed for shipping.
Specifications
OPTIONS
Tank
| Part Number | Description |
| PE300RA | 300 Gallon Tank |
Trailer Frame
| Part Number | Description |
| HCMETR | HCMETR |
Pumps
| Part Number | Description |
| C1700D | Hypro® 5 Roller Pump |
| XL1700D | Hypro® "Silver Cast" 5 Roller Pump |
| 9425071 | Hypro® Belt Drive Pump with Constant Velocity PTO Shaft (C9402 540S) |
| 9425056 | Hypro® Hydraulic Pump (C9303HM1)(hoses included) |
Plumbing / Pump Mount
| Part Number | Description |
| 9425002 | Roller Pump Kit (Manual Controls included) |
| 9425003 | Hypro® Belt Drive Centrifugal Kit |
| 9425004 | Hypro® Hydraulic Centrifugal Kit |
Controls
| Part Number | Description |
| CP3B3HV | Manual Control Valves for Centrifugal Pumps |
| CP414HVR | 3 section electric (solenoid valve) |
Boom with Plumbing
| Part Number | Description |
| 9488151 | 21' Truss-T boom (1 section)(13 nozzles) See Components Section for tips |
| 9488152 | 30' Truss-T boom (1 section)(19 nozzles) |
| 9488153 | 45' Truss-T, rear cross-fold boom (25 nozzles) spray tips not included |
| 9488143 | 60' Front Fold Boom |
| 9464007 | Boomless Jet Nozzle (Nozzle not included) |
Accessories
| Part Number | Description |
| SU341 | Factory setup |
| CPTK1 | Quick Refill (utilizes nurse tank transfer pump for refilling) |
| 9428002 | Fence Line Spray Kit, Electric |
| 9428003 | Fence Line Spray Kit, Manual |
| DBHG | Handgun (includes 25' of 1/2" hose) |
