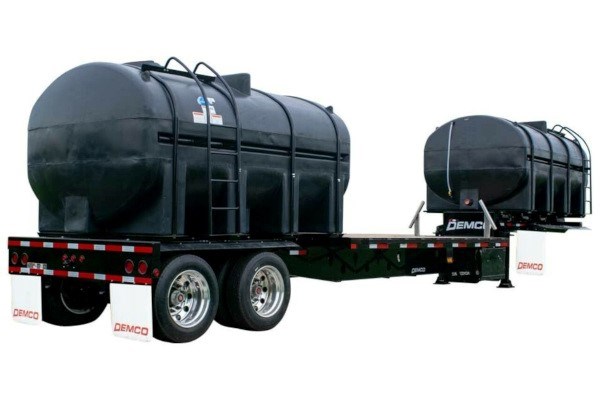

Demco 36' Liquid Tender Trailer
36' Liquid Tender Trailer
The new 36' liquid tender trailer from Demco has a deck length of 9'6". This shorter trailer will still holds 4,700-6,500 gallons as the larger models.
Features
- 24” King pin
- Exterior mating surfaces are caulked prior to paint to prevent rust
- 2 aluminum steps with handrails
- Black plastic liquid tanks eliminate light from reaching the interior contents preventing algae and microbes growth
- 16.5” x 7” brake size, color coded
- Midship turn signals
- 255/70 R22.5 - 16 ply DOT tires and wheels
- Rubber mounted LED lights, DOT approved tape
Specifications
| Specifications | |
| Width | 102" |
| Capacity | 55,000 lbs. |
| Axles | Closed Tandem SAF Holland Spring Ride (optional Air Ride) 2 x 22,500 (ABS on 1 axle) |
| Deck Length | 9'6" |
| GVWR | 63,500 lb. |
| Main Beam Sizes | |
| Web | 1/4" high grade 100,000 yield steel |
| Flange | 3/8" x 5" high grade 100,000 yield steel |
| Cross members | 4" x 3.2# 80,000 yield jr. I-beam on 16" centers |
| Side rails | 6" x 8.2# structural C channel |
| Rub rail | 2" x 3/8" flat steel |
| Beam rating | 50,000 lbs per 10 linear feet |
| Decking | |
| Material | 1 1/8" x 7" Apitong flooring |
| Transition Drop | 19.5" between decks |
Options
• Air ride suspension for 36’ trailer
• ABS installed on second axle
• 12 Volt power front or front and rear
• Tank options: Den Hartog end and center drain tanks 2350, 2750, 3250 gallons
• Enduraplas center drain on 2800 and 3200
• Storage bins and/or Toolboxes: 3 on passenger side and 3 on drivers side
• Front and rear ladder options for 3250 gallon tank only
• Aluminum rims, hub piloted (each)
• Custom paint color (red, gray, white, blue)
