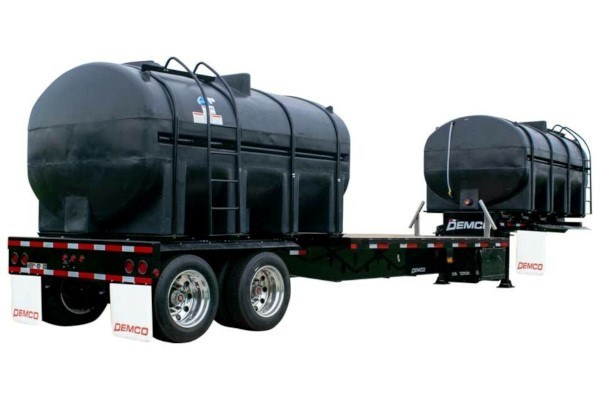

Demco 40' Liquid Tender Trailer
40' Liquid Tender Trailer
The new 40 foot liquid tender trailer from Demco is rugged, safe and built to last. The deck length is 13'6" with a capacity of 55,000 lbs.
Features
- 24” King pin
- Exterior mating surfaces are caulked prior to paint to prevent rust
- 2 aluminum steps with handrails
- Black plastic liquid tanks eliminate light from reaching the interior contents preventing algae and microbes growth
- 16.5” x 7” brake size, color coded
- Midship turn signals
- 255/70 R22.5 - 16 ply DOT tires and wheels
- Rubber mounted LED lights, DOT approved tape
Specifications
| Specifications | |
| Width | 102" |
| Capacity | 55,000 lbs. |
| Axles | Closed Tandem SAF Holland Spring Ride (optional Air Ride) 2 x 22,500 (ABS on 1 axle) |
| Deck Length | 13'6" |
| GVWR | 68,000 lb. |
| Main Beam Sizes | |
| Web | 1/4" high grade 100,000 yield steel |
| Flange | 3/8" x 5" high grade 100,000 yield steel |
| Cross members | 4" x 3.2# 80,000 yield jr. I-beam on 16" centers |
| Side rails | 6" x 8.2# structural C channel |
| Rub rail | 2" x 3/8" flat steel |
| Beam rating | 50,000 lbs per 10 linear feet |
| Decking | |
| Material | 1 1/8" x 7" Apitong flooring |
| Transition Drop | 19.5" between decks |
Options
• Air ride suspension for 40’ trailer
• ABS installed on second axle
• 12 Volt power front or front and rear
• Tank options: Den Hartog end and center drain tanks 2350, 2750, 3250 gallons
• Enduraplas center drain on 2800 and 3200
• Storage bins and/or Toolboxes: 3 on passenger side and 3 on drivers side
• Front and rear ladder options for 3250 gallon tank only
• Aluminum rims, hub piloted (each)
• Custom paint color (red, gray, white, blue)
