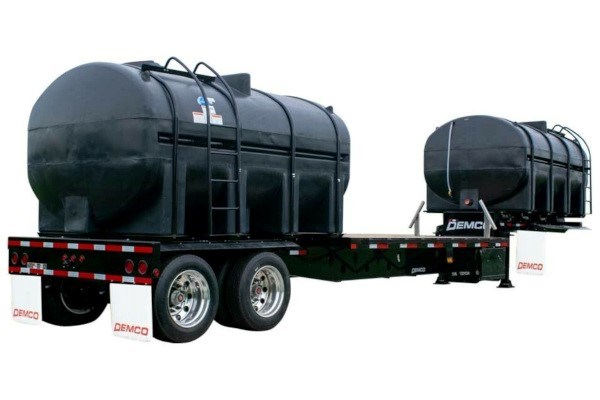

Demco 48' Liquid Tender Trailer - Triple Axle
48' Liquid Tender Trailer - Triple Axle
Demco's 48' liquid tender trailer is available as a triple axle trailer.
Features
- 24” King pin
- Exterior mating surfaces are caulked prior to paint to prevent rust
- 2 aluminum steps with handrails
- Black plastic liquid tanks eliminate light from reaching the interior contents preventing algae and microbes growth
- 16.5” x 7” brake size, color coded
- Midship turn signals
- 255/70 R22.5 - 16 ply DOT tires and wheels
- Rubber mounted LED lights, DOT approved tape
Specifications
| Specifications | |
|---|---|
| Width | 102" |
| Dry Weight | 13,900 lbs. |
| Capacity | 55,000 lbs. |
| Axles | Triple Axle SAF Holland Air Ride ONLY 3 x 23,000 (ABS on 1 axle) |
| Deck Length | 21' |
| GVWR | 77,500 lb. |
| Main Beam Sizes | |
| Web | 1/4" high grade 100,000 yield steel |
| Flange | 3/8" x 5" high grade 100,000 yield steel |
| Cross members | 4" x 3.2# 80,000 yield jr. I-beam on 16" centers |
| Side rails | 6" x 8.2# structural C channel |
| Rub rail | 2" x 3/8" flat steel |
| Beam rating | 50,000 lbs per 10 linear feet |
