Demco 600 Gallon Pull Type Sprayers
600 Gallon Pull Type Sprayers

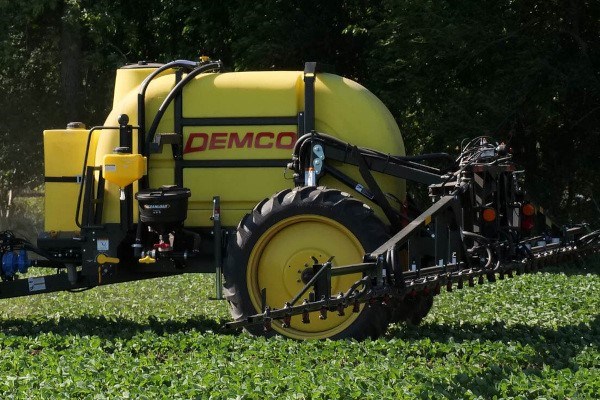

Demco's 600 Gallon Pull Type Sprayer with a 45’ or 60’ FF boom or 60' or 45' x-fold booms available. Booms feature hydraulic wing fold, height adjust, wing leveling and outer wing breakaway.
Features
MEDIUM CAPACITY FIELD SPRAYER
Demco’s New 600 gallon trailer sprayer has a proven, time-tested design. Available with many different boom and pump options, as well as many accessories, Demco’s 600 gallon trailer sprayer can be configured for your application requirements.
If you need a versatile, medium capacity field sprayer, you need to look at Demco!
- 600 gallon tank with 16" fill wells, large center drain sump and high volume jet agitator
- External liquid site gauge
- 55 GAL rinse tank standard and 2 ½ gallon hand wash
- Fold away ladder provided easy access to work platform
- Short hitch pin to axle length 130” for superior tracking
- Single tube hitch frame with an adjustable tongue with 7” of total adjustment
- 13.6 X 38 bias tires
- Pump and plumbing are front mount allowing for easy maintenance
- 50 mesh main filter and 60 mesh feeder line filters prevent tip plugging
- 160 lb. glycerin filled gauge
- 2” quick coupler for bottom filling tanks
- 60’ or 45’ FF or 60’ or 45’ x-fold is available.
- Front fold boom is available with a pendant or non-pendant options.
- Booms feature hydraulic wing fold, height adjust, wing leveling and outer wing breakaway
GROUND CLEARANCE estimated @ 28”
TRANSPORT WIDTH 9’ 6”
NOTE: Sprayer is less spray tips.
Factory set up is standard.
Boom may be removed for shipping.
Specifications
OPTIONS
Tank and Trailer Frame with Tires
| Part Number | Description |
| 9411142-76 | 600 Gallon 38" Big Wheel Tank and Trailer Assembly (62" - 120" Spacing) |
Pumps
| Part Number | Description |
| 9425103 | Hypro® Gear Drive with Constant Velocity PTO Shaft (C9016 540) |
| 9425104 | Hypro® Hydraulic Pump (C9303HM1) (hoses included) |
| 9425105 | Ace Hydraulic Pump FMC155HYD206 (hoses included) |
Accessories
| Part Number | Description |
| 9428196 | 33 Gallon Foam Marker Yellow Tank |
| 9428197 | Chemical Eductor |
Boom
| Part Number | Description |
| 9488161 | 45' Hydraulic Front Fold Boom without Pendant |
| 9488162 | 60' Hydraulic Front Fold Boom without Pendant |
| 9488163 | 66' Hydraulic Front Fold Boom without Pendant |
| 9488164 | 45' Hydraulic Front Fold Boom with Pendant |
| 9488165 | 60' Hydraulic Front Fold Boom with Pendant |
| 9488166 | 66' Hydraulic Front Fold Boom with Pendant |
| 9488167 | 45' X-fold Boom for 600 Pull Type Sprayer |
| 9488168 | 60' X-fold Boom for 600 Pull Type Sprayer |
Front Fold Boom Accessories
| Part Number | Description |
| 9428118 | TeeJet® Drip Free (27 Nozzles) for 45' Boom |
| 9428121 | TeeJet® Triple Drip Free (27 Nozzles) for 45' Boom |
| 9428108 | TeeJet® Drip Free (37 Nozzles) for 60' Boom |
| 9428109 | TeeJet® Triple Drip Free (37 Nozzles) for 60' Boom |
| 9428120 | TeeJet® Drip Free (40 Nozzles) for 66' Boom |
