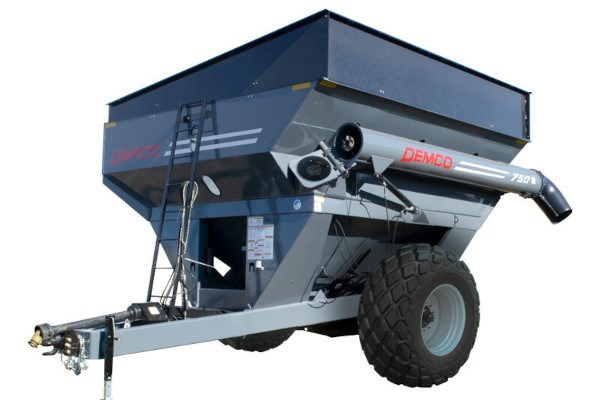

Demco 650 & 750 Grain Cart
650 & 750 Grain Cart
Demco’s grain cart is built rugged for heavy loads. The chassis is extra heavy duty to stand up to fields with imperfect terrain when the cart is fully loaded. The slope design of the box insures hassle-free unloading. Driven by an automatic overrunning slip clutch PTO shaft, the balanced auger and gearbox are protected from high torque start-ups associated with handling high moisture grain.
Features
Standard Features
- 1000 RPM PTO
- Protect auger driver and tractor PTO with the automatic reset “cut-out” clutch with overrunning clutch
- 2 grain viewing windows
- 7,000 lb. drop-leg tongue jack with separate storage position provides tighter turning radius
- Hand wheel operated clean-out door at bottom of auger for easy post season clean-out
- 30” hydraulic controlled flow gate
- High visibility - reflective decals
- LED Tail, flasher/turn signal lights and auger spotlight for nighttime operation
- Transport width: 12’ 9”’
- Welded box construction with silicone sealed seams resists rust and corrosion
- 22,500 lb. Ductile Iron Hubs
Auger
- 14” diameter balanced auger with 3/8” flighting and Posi-Drive connection
- UltraFlyte made with 1008/1010 high carbon steel including a thicker outer edge, resulting in up to 50% longer wear and faster conveying
- Forward reach auger for optimum operator visibility
- Auger folds within the width of the box for compact transporting and storage
Options
- Hydraulic Drive Kit (15-25 GPM oil flow required)
- Roll top tarp
- Ergonomic pendant control
- Adjustable auger spout
- Scale Kits
NOTES ON HYDRAULICS: A standard grain cart requires two hydraulic remotes. The optional adjustable spout requires an additional hydraulic remote. Additional 15 - 25 GPM oil flow is required for hydraulic unloading drive.
Specifications
| Grain Cart Specifications | 750 Bushel | 650 Bushel |
| Capacity | 750 Bu. | 650 Bu. |
| Balanced Auger Size | 14" | 14" |
| Unloading Time (bu/min.) | 250 | 250 |
| Spindle Size | 4 1/2" | 4 1/2" |
| Tractor HP Required | 150+ | 150+ |
| Hub Size | 10 bolt | 10 bolt |
| Tread Width (stand.) | 120" | 120" |
| Tread Width (opt.) | 120-144" | 120-144" |
| Tongue Frame | 4"x10" | 4"x10" |
| Tongue Weight (empty) | 1,240 lbs. | 1,190 lbs. |
| Tongue Weight (loaded) | 2,900 lbs. | 2,600 lbs. |
| Weight/Wheels & Tires | 8,220 lbs. | 7,560 lbs. |
| Weight/Tracks | NA | NA |
* Bushel capacity measured with #2 corn at 15% moisture content (56 lb. test weight)
