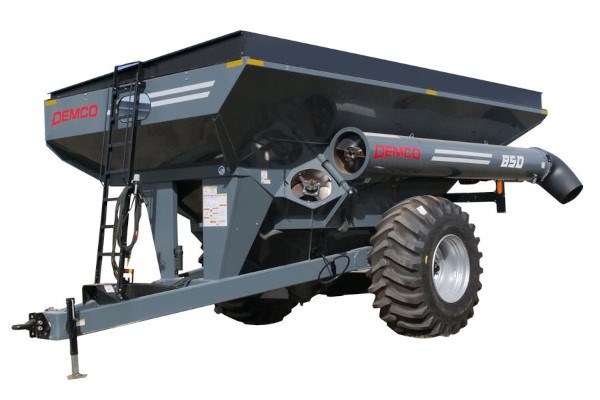

Demco 850 Grain Cart
850 Grain Cart
Demco’s grain cart is built rugged for heavy loads. The chassis is extra heavy duty to stand up to fields with imperfect terrain when the cart is fully loaded. The slope design of the box insures hassle-free unloading. Driven by an automatic overrunning slip clutch PTO shaft, the balanced auger and gearbox are protected from high torque start-ups associated with handling high moisture grain.
Features
Standard Features
- 1 ¾ - 1000 RPM PTO
- Protect auger driver and tractor PTO with the automatic reset “cut-out” clutch with overrunning clutch
- Adjustable austempered cast hitch, fits category 4 or 5 hammer strap tractor drawbar
- High visibility - reflective decals
- LED Tail, flasher/turn signal lights and auger spotlight for nighttime operation
- Tube and truss design - adjustable axle
- Welded box construction with silicone sealed seams resists rust and corrosion
- Heavy duty spindles and hubs
Auger
- 20” diameter balanced auger with 3/8” flighting and Posi-Drive connection
- UltraFlyte made with 1008/1010 high carbon steel including a thicker outer edge, resulting in up to 50% longer wear and faster conveying
- Forward reach auger for optimum operator visibility
- 2 stage unload auger folding cylinder
Options
- Roll top tarp
- Ergonomic pendant control
- Scale kits
- Hydraulic Drive Kit - High Speed/Torque
- Camso Track System
- 850 SA - 70 Series - Soucy Hub Mount Track System
Specifications
| Capacity | 850 Bu. |
| Balanced Auger Size | 20" |
| Unloading Time (bu/min.) | 530 |
| Spindle Size | 4 1/2" |
| Tractor HP Required | 175+ |
| Hub Size | 10 bolt |
| Tread Width (stand.) | 120" |
| Tread Width (opt.) | 120-144" |
| Tongue Frame | 4"x10" |
| Tongue Weight (empty) | 1,180 lbs. |
| Tongue Weight (loaded) | 4,000 lbs. |
| Weight/Wheels & Tires | 11,400 lbs. |
| Weight/Tracks | 17,600 lbs. |
