Demco Grain Tank Extensions & Tip-Ups
Grain Tank Extensions & Tip-Ups
Features

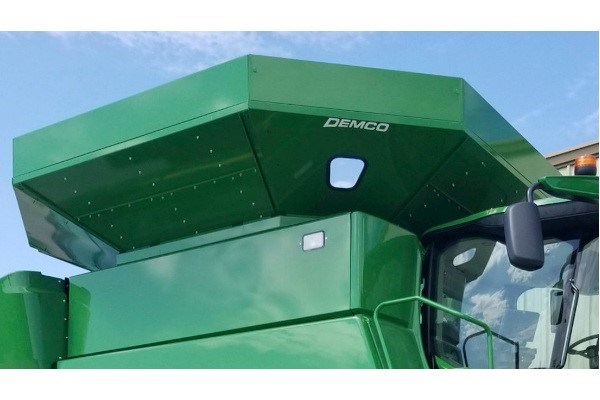

JDXL FOR S SERIES COMBINES
Demco XL grain tank extensions allow you to add more capacity by replacing the factory extension
Part Number: 9E000040
Available for John Deere S680/S690/S780/S790
FEATURES
• Convenient fold down for storage or transport
• Durable and sturdy design
• Total capacity approx. 560 bu
• Height above cab approx. 32”
• Overall height approx. 15’-6”
S SERIES COMBINES WITH 17" AUGER
Demco grain tank extensions allow you to add more capacity by replacing the factory extension
Part Number: 9E000032
Available for John Deere S660/S670/S680/S690/S760/S770/S780/S790 Combines
FEATURES
- Convenient Fold Down for Storage or Transport
- 3" Frame & 14 GA. Panels For Unmatched Strength and Stability
- Extension (9E000032) Provides Total Capacity of Approx. 375 bu.
- Extension (9E000032) + Tip-Up (9E000002) Provides Total Capacity of Approx. 435 bu.
S SERIES COMBINES WITH 14" AUGER
Demco grain tank extensions allow you to add more capacity by replacing the factory extension
Part Number: 9E000033
Available only for John Deere S550/S650/S660 (equipped with Regular Rate Unload) Combines
FEATURES
- Convenient Fold Down for Storage or Transport
- 3" Frame & 14 GA. Panels For Unmatched Strength and Stability
- Extension (9E000033) Provides Total Capacity of Approx. 375 bu.
- Extension (9E000033( + Tip-Up (9E000034) Provides Total Capacity of Approx. 435 bu.
ADDED BUSHEL CAPACITY PER EXTENSION
| Model | Size | Added Capacity | Total Capacity |
| 9400, 9410, 9450 | Extension | 118 | 300 |
| 9400, 9410, 9450 | Extension + Tip-up | 118+50 | 350 |
| 9500, 9510, 9550 | Extension | 96 | 300 |
| 9500, 9510, 9550 | Extension + Tip-up | 96+50 | 350 |
| 9550, 9560W (2002 and Newer) | Extension | 96 | 300 |
| 9550, 9560W (2002 and Newer) | Extension + Tip-up | 96+50 | 350 |
| 9600, 9610, 9650W | Extension | 110 | 350 |
| 9600, 9610, 9650W | Extension + Tip-up | 110+40 | 390 |
| 9650, 9660W (2002 and Newer) | Extension | 110 | 350 |
| 9650, 9660W (2002 and Newer) | Extension + Tip-up | 110+40 | 390 |
| 9650, 9660 STS | Extension | 125 | 375 |
| 9650, 9660 STS | Extension + Tip-up | 125+60 | 435 |
| 9750, 9760, 9860, 96/97/9870 STS | Extension | 75 | 375 |
| 9750, 9760, 9860, 96/97/9870 STS | Extension + Tip-up | 75+60 | 435 |
| S550 | Extension | 125 | 375 |
| S550 | Extension + Tip-up | 125+60 | 435 |
| S660/S670/S760/S770 | Extension | 75 | 375 |
| S660/S670/S760/S770 | Extension + Tip-up | 75+60 | 435 |
| S680/S690/S780/S790 | Extension | - | 400 |
| S680/S690/S780/S790 | Extension + Tip-up | 35 | 435 |
EXTENSION HEIGHTS
| Model | Size | Folded Height | Open Height |
| John Deere | Extension | 6" | 18" |
| John Deere | Extension + Tip-up | 8" | 26" |
