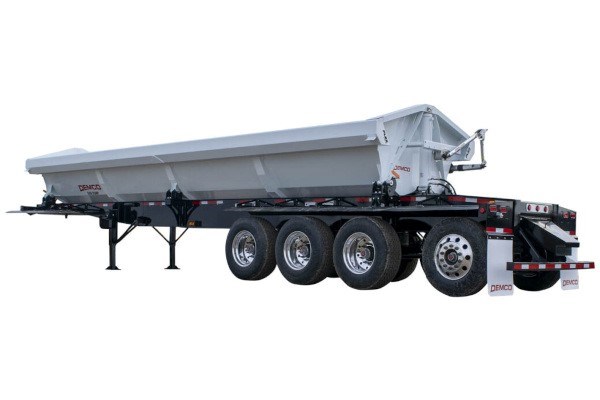

Demco Quad Axle Side Dump Trailers
Quad Axle Side Dump Trailers
AIR RIDE SUSPENSION
When you want one of the most sturdy side dump trailers on the market, the quad axle side dump offers premium stability, low center of gravity and large cubic yard capacity. Made out of the quality AR450 tub Steel, the quad axle features easy left to right dump changes and a deeper tub for stable movement wherever you take it.
Features
- Low center of gravity for stability
- Massive Single G-Rail
- Six Integrated Tub Pivot Points with Greaseless Pivot Bearings
- Single Sided Dump Change
- Quick Left to Right Dump Change
- Dump Direction Indicators
- 20" Deep I-beam Chassis Frame
- Rounded Vee Dump Body Design
- EdgeFlex Fenders
- Bolt-On UnderRide
- Brake size: 16.5” x 7”
- Large Body Side Stiffener, Maintain 102" Loaded
- 20 Sec. Dump Time (30 Sec. Cycle) @33 GPM Hydraulic Flow
- 77-1/2" Track w/ABS on one Axle (23K#)
- LED Lighting
Specifications
| Model Number | Chassis Length (Feet) | Suspension Type | Tub Length (Feet) | Tub Volume (Cu. Yd.) | Tare Weight (lbs) | Lift Type | Manual P/N |
| 9CCR444AR3726 | 44 | Air Ride | 37 | 24.5 | 18,500 | N/A | 8C000401 |
| 9CCR444ARFL3726 | 44 | Air Ride | 37 | 24.5 | 18,500 | Front Lift | 8C000401 |
| 9CCR444ARFLRLS3726 | 44 | Air Ride | 37 | 24.5 | 19,200 | Front Lift & Rear Lift Steer | 8C000401 |
| 9CCR444AR3424 | 44 | Air Ride | 34 | 24.5 | 19,200 | Rear Lift Steer | N/A |
| 9CCR444ARRLS3424 | 44 | Air Ride | 34 | 24.5 | 19,200 | Rear Lift Steer | 8C000402 |
| 9CCR474ARFLRL3726 | 47 | Air Ride | 37 | 24.5 | 19,500 | Front Lift & Rear Lift Steer | 8C000403 |
| 9CCR474ARRL3726 | 47 | Air Ride | 37 | 24.5 | 19,500 | Rear Lift | 8C000403 |
| 9CCR474ARFLRLS3726 | 47 | Air Ride | 37 | 24.5 | 19,500 | Front Lift & Rear Lift Steer | 8C000403 |
SPECIFICATIONS
- Air Ride: SAF Holland CBX23-245 Air Suspension with Integrated Axles
- 23K Axles with Wabco ABS brakes (single axle) and 10 bolt hub piloted steel rims, 75,000 lbs. GVW
- 5" Dia. Dump Cylinder 43K# Payload @2250 psi
- 1/4" AR450 Steel with trademarked FlexCorner® Design
FEATURES
- Low center of gravity for stability
- Massive Single G-Rail
- Six Integrated Tub Pivot Points with Greaseless Pivot Bearings
- Single Sided Dump Change
- Quick Left to Right Dump Change
- Dump Direction Indicators
- 20" Deep I-beam Chassis Frame
- Rounded Vee Dump Body Design
- EdgeFlex Fenders
- Bolt-On UnderRide
- Brake size: 16.5” x 7”
- Large Body Side Stiffener, Maintain 102" Loaded
- 20 Sec. Dump Time (30 Sec. Cycle) @33 GPM Hydraulic Flow
- 77-1/2" Track w/ABS on one Axle (23K#)
- LED Lighting
------------------
OPTIONS
- 6” Dia. Dump Cylinder 62K# Payload @2250 psi
- ¼” FLX-500 Tub with Original FlexCorner Design
- Black, White, Yellow, or Custom Paint Color
- ABS Installed on 2nd Axle
- Lead Trailer Pintle Hook
- Air Weigh Scale Kit
- Bolt-On Extended Push Block
TIRE & RIM OPTIONS
- 11R 22.5 LRH Domestic Radial Tires or Import Radial Tires *
- 385/65R 22.5 LRJ Domestic Radial Tires or Import Radial Tires *
- All Polished Aluminum Rims *
- Outside Polished Aluminum Rims, Inside Steel Rims *
TARP OPTIONS
- Black Mesh Tarp (Roll-Rite or Aero)
- Tarp Lock-Out Kit (with Electric over Hydraulics ONLY)
LIFTS
- * 11R 22.5 and 11R 24.5 - Lifts can be dual (4) or single (2) tires.
- ** 385/65R 22.5 - Lifts can only be single (2) tires. Lifts with steer cannot use these tires.
- *** 385/65R 22.5 - Aluminum Rims ONLY
