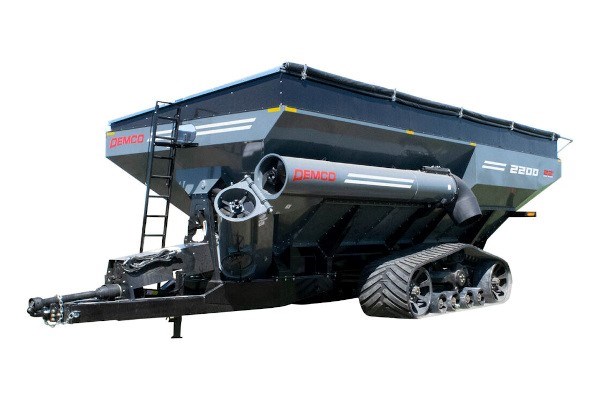

Demco 2200 Grain Cart

Double tap to zoom



Features

  • 1 ¾ - 1000 RPM PTO
  • Automatic reset “cut-out” clutch with overrunning clutch to protect auger driver and tractor PTO
  • PTO driven drivetrain. Gearbox includes 2 output PTO shafts (1 for horizontal auger and 1 for vertical auger). NO Pulleys or Belts!
  • Adjustable austempered cast hitch, fits category 4 or 5 hammer strap tractor drawbar
  • 22” diameter vertical auger with 3/8” flighting and Posi-Drive connection
  • 20” horizontal drag auger
  • UltraFlyte made with 1008/1010 high carbon steel including a thicker outer edge, resulting in up to 50% longer wear and faster conveying
  • Forward reach auger for optimum operator visibility
  • Forward reach auger adjusts vertically from 12’ to 16’ to help prevent grain spilling
  • Auger folds within the width of the box for compact transporting and storage
  • 2 stage unload auger folding cylinder
  • Grain viewing windows
  • 10,000 lb. drop-leg tongue jack with separate storage position provides tighter turning radius
  • Hand wheel operated clean-out door at bottom of auger for easy post season clean-out
  • Reflective decals & LED lights for high visibility
  • Narrow transport width – 14’
  • Low side cart height for better clearance. ONLY 11’8” (2222)
  • Low center of gravity for side hill stability
  • 6 lever operated doors for trough clean-out
  • Backlit ergonomic pendant operates “1 touch” auger fold, adjustable spout, unload auger height adjust, and drag auger door
  • Backlit ergonomic pendant requires 1 remote outlet
  • Roll tarp
  • 5-point scale system (monitor not included)

NOTE: Demco grain carts are not to be towed down the road loaded

Specifications

Specifications 1722 Grain Cart
Level Full Capacity 2200
Heaped Full Capacity 2350
Vertical Unload Auger 22"
Horizontal Drag Auger 20"
Unloading Time (bu/min.) 600
Spindle Size 5 1/2"
Tractor HP Required 400
Hub Size 10 bolt
Tread Width 13'7"
Tongue Weight Empty 5000 lbs.
Tongue Weight Loaded 6500 lbs.
Total Weight-Wheels/Tires and Tarp 35,080 lbs.
Rear Ground Clearance 2'10"
